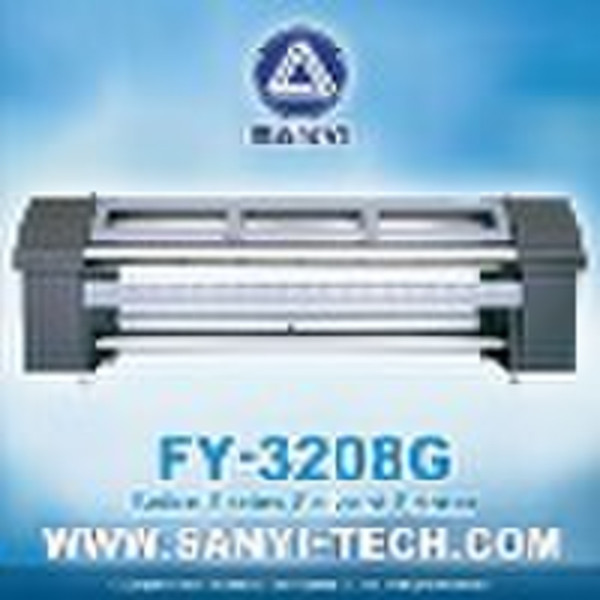

flex printing machine FY-3208G(Seiko Spt510 head)

flex printing machine FY-3208G(Seiko spt510head) Specification:Product Model FY-3208G PrintheadSPT510-35PL Number of Printhead8 HeadsMaximum Print Width3200mm Output (m²/h)Print modeStandard Output (m²/h)360x360 1 pass 101240x720 2 pass 76240x1080 3 pass 51360x1080 3 pass 34720x720 4 pass 26InkType :Solvent Ink / Mild Solvent InkColor : 4 Colors( C , M , Y , K )Capacity : 1L or 5L per Main Tank of Each ColorInk Supply System : Low Ink Detector, Auto or Manual Ink Supply SystemMediaWidth :3300mmType :Vinyl,Flex,Polyester,Back-lit Film,Window Film,etcAuto Media Feeding SystemEquipped ( Max. Media Weight 80kg )Auto Cleaning SystemIndividual Positive Pressure Cleaning Anti-clogged Flash Function & Capping System Pre-heating & Drying SystemEquipped ClampEquipped Print InterfaceOptical Fiber Printhead Height2 to 6 mm Above Media Adjustable RIP SoftwareMaintop , UltraPrint , PhotoPrint , Topaz , Wasatch , Caldera Input PowerAC 220V ,50Hz/60Hz Machine DimensionL4600 x W820 x H1320 mm Net Weight : 482Kg Package DimensionL4650 x W970 x H1600 mm Gross Weight : 770Kg Operation EnvironmentTemperature : 2028 Humidity : 40%60% Features <> Seiko Instrument Group SPT printhead, 510 nozzles per printhead. <> The voltage of the printhead is able to adjust automatically depending on the temperature. This will solve the problem on nozzle clogging under huge temperature change. <> The function of skipping white space is added to increase productivity. <> The adjustment of bi-direction, step and carriage moving speed can be modified during printing. <> Edge feather function can blur the pass line and feather pass edge. <> Well designed alloy-aluminum girder is installed to decrease the noise during printing. Achieve the perfect quiet working environment. <> Photoprint / Maintop / Wasatch softwareprovide user-friendly interface and handy function with two types of printing. <> 100% single color black is used on printing black text to avoid mixture of color. <> Control system has the function of resuming printing after the power is cut off. This helps you to save unnecessary loss of cost. <> The powerful suction fans equipped under the printing platform to avoid the collision between the carriage and the media, high resolution can be obtained
